VISCOSITY GRADE BITUMEN

Introduction of Viscosity Grade bitumen

This particular variety of bitumen, which is of an appropriate grade, is put to use in the production of asphalt, street paving, and concrete sidewalks. Refinery bitumen is produced via vacuum baton aeration in the distillation tower. Viscosity Grade Bitumen, which is the type of bitumen that is utilized the most frequently in the manufacturing of hot asphalt, is a part of this category of bitumen. This particular variety of bitumen possesses a thermoplastic property, which is a property that causes this material to be brittle and unyielding when exposed to cold weather and to become more malleable when exposed to warm weather. Because of this quality, the combination of the viscosity of bitumen with other materials results in a road surface that is more long-lasting. As a result of the precision with which it is graded, this particular variety of bitumen is favored more than penetration bitumen.

The value of bitumen’s penetration at 25 degrees Celsius determines its classification as penetration grade, while the value of bitumen’s viscosity at 60 and 135 degrees Celsius determines its classification as viscosity grade. This demonstrates how VG bitumen is suitable for both low and high temperatures, making it possible to accurately forecast how bitumen would behave in various thermal conditions. Bitumen is divided into numerous grades after undergoing a viscosity test, including VG10 Bitumen, VG20 Bitumen, VG30 Bitumen, and VG40 Bitumen. The higher the number in the viscosity grading system, the harder the bitumen is regarded to be.

WHAT IS VISCOSITY GRADE BITUMEN?

In the production of hot asphalt for road building, viscosity bitumen is a form of bitumen that is often utilized. This form of bitumen has a thermoplastic feature that makes it bendable in warm weather and brittle and rigid in cold weather. It has a thick, gooey consistency and is quite viscous, which allows it to combine with other materials to form a durable road surface. At a refinery’s distillation tower, viscosity bitumen is created using vacuum baton aeration.

We manufacture the highest quality Viscosity Bitumen / VG Bitumen in different types and grades and export them from Iran and the UAE to other countries around the world.

  • Iran Viscosity Grade Bitumen / Iran VG Bitumen
  • UAE Viscosity Grade Bitumen / UAE VG Bitumen

VISCOSITY GRADE BITUMEN ADVANTAGES

  • In today’s world, viscosity bitumen is utilized rather than penetration bitumen since it is subjected to more stringent testing in two stages by industry professionals. First, the penetration of bitumen is tested at a temperature of 25 degrees Celsius, which is the normal temperature. However, the findings of this test are not trustworthy in the hot weather, therefore they measure the viscosity of bitumen at temperatures of 60 degrees Celsius and 135 degrees Celsius. The results of these tests show that VG bitumen can withstand temperatures in a broad range, from 25 degrees Celsius for fatigue cracking to 135 degrees Celsius for construction. Temperature susceptibility may also be established using these tests.
  • Time and money may be saved because to the reduced number of tests; according to IS, it only has seven tests, while penetration has fourteen tests.
  • Longer durability: the pavement made from VG Bitumen will have better performance because the viscosity value at 135°C gives a sufficient idea about mixing and compaction temperature, and as a result, pavement life is improved. This is because the viscosity value at 135°C gives a sufficient idea about mixing and compaction temperature.
  • In contrast to the penetration grade, the rutting performance of any two different samples of the same VG bitumen would be quite comparable throughout the hot summer months.
  • When applied at a temperature of 135 degrees Celsius, the minimum kinematic viscosity value that is provided helps to reduce the possibility of tender mixes occurring during construction.
  • The use of VG bitumen is appropriate for locations that see significant volumes of vehicular activity.

VISCOSITY GRADE BITUMEN SPECIFICATIONS

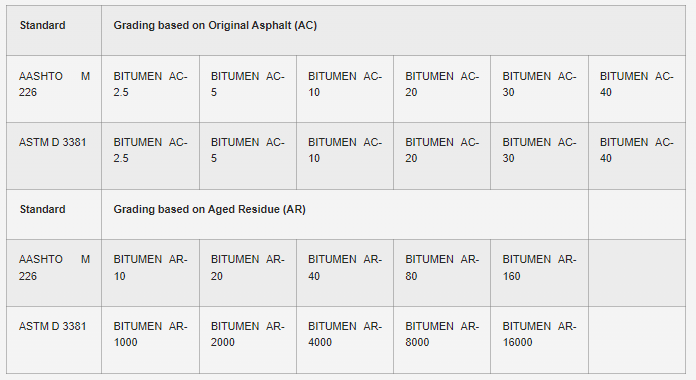

Bitumen is available in a variety of viscosity grades, which are categorized according to the criteria established by the ASTM standard. These classifications have been outlined and presented by the ASTM standard, which makes use of methodologies such as D3381 and AASHTO M226.

Standard

Grading based on Original Asphalt (AC)

Grading based on Aged Residue (AR)

AASHTO M 226

BITUMEN AC-2.5

BITUMEN AC-5

BITUMEN AC-10

BITUMEN AC-20

BITUMEN AC-30

BITUMEN AC-40

BITUMEN AR-10

BITUMEN AR-20

BITUMEN AR-40

BITUMEN AR-80

BITUMEN AR-160

ASTM D 3381

BITUMEN AC-2.5

BITUMEN AC-5

BITUMEN AC-10

BITUMEN AC-20

BITUMEN AC-30

BITUMEN AC-40

BITUMEN AR-1000

BITUMEN AR-2000

BITUMEN AR-4000

BITUMEN AR-8000

BITUMEN AR-16000

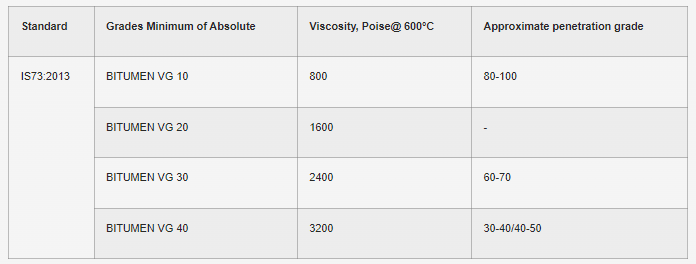

To compare the specifications of different grading systems, it is necessary to identify the equivalent grade of another system. The following table displays the equivalent penetration grades of viscosity grades.

Standard

Grades Minimum of Absolute

Viscosity, [email protected] 600°C

Approximate penetration grade

IS73:2013

BITUMEN VG 10

800

80-100

BITUMEN VG 20

1600

BITUMEN VG 30

2400

60-70

BITUMEN VG 40

3200

30-40/40-50

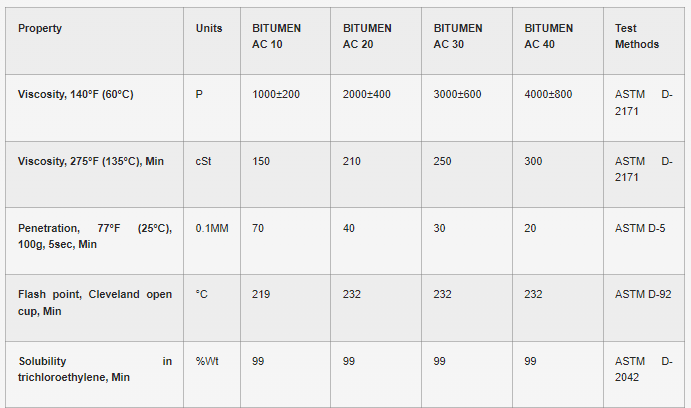

Viscosity Grade Bitumen Specification (ASTM D3381-09)

Property

Units

BITUMEN AC 10

BITUMEN AC 20

BITUMEN AC 30

BITUMEN AC 40

Test Methods

Viscosity, 140°F (60°C)

P

1000±200

2000±400

3000±600

4000±800

ASTM D-2171

Viscosity, 275°F (135°C), Min

cSt

150

210

250

300

ASTM D-2171

Penetration, 77°F (25°C), 100g, 5sec, Min

0.1MM

70

40

30

20

ASTM D-5

Flash point, Cleveland open cup, Min

°C

219

232

232

232

ASTM D-92

Solubility in trichloroethylene, Min

%Wt

99

99

99

99

ASTM D-2042

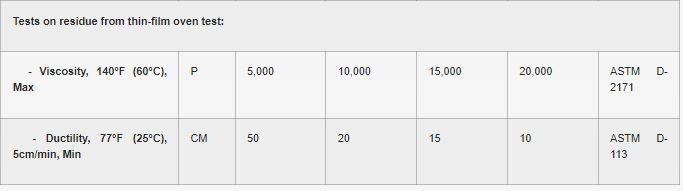

Tests on residue from thin-film oven test:

  – Viscosity, 140°F (60°C), Max

P

5,000

10,000

15,000

20,000

ASTM D-2171

  – Ductility, 77°F (25°C), 5cm/min, Min

CM

50

20

15

10

ASTM D-113

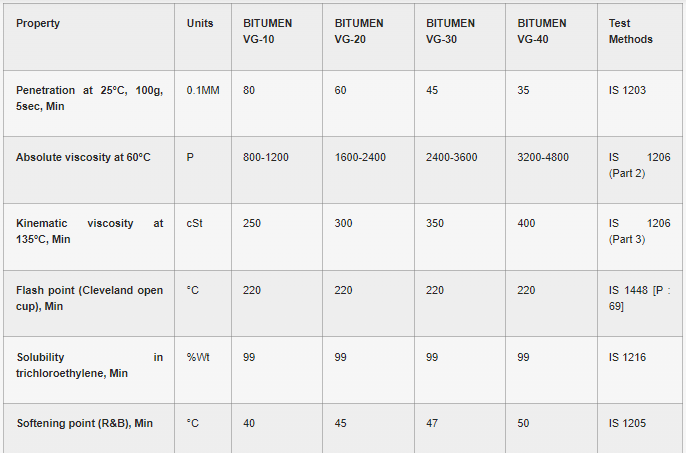

Viscosity Grade Bitumen Specification (IS 73:2013)

Property

Units

BITUMEN VG-10

BITUMEN VG-20

BITUMEN VG-30

BITUMEN VG-40

Test Methods

Penetration at 25°C, 100g, 5sec, Min

0.1MM

80

60

45

35

IS 1203

Absolute viscosity at 60°C

P

800-1200

1600-2400

2400-3600

3200-4800

IS 1206 (Part 2)

Kinematic viscosity at 135°C, Min

cSt

250

300

350

400

IS 1206 (Part 3)

Flash point (Cleveland open cup), Min

°C

220

220

220

220

IS 1448 [P : 69]

Solubility in trichloroethylene, Min

%Wt

99

99

99

99

IS 1216

Softening point (R&B), Min

°C

40

45

47

50

IS 1205

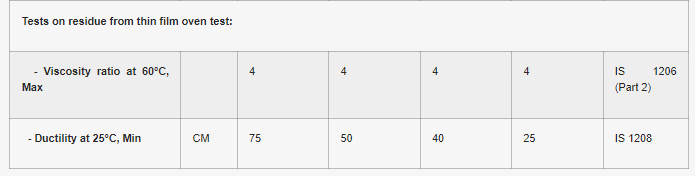

Tests on residue from thin film oven test:

  – Viscosity ratio at 60°C, Max



4

4

4

4

IS 1206 (Part 2)

  – Ductility at 25°C, Min

CM

75

50

40

25

IS 1208

Viscosity GRADE bitumen APPLICATIONS

Viscosity Bitumen is a grade of bitumen that is most often used as a paving grade. It is appropriate for the building of roads and is effective in providing prime qualities in asphalt pavements. petro naft provides a wide range of high-quality grades in this category, which has been listed below.

BITUMEN VG-10

Spraying VG10 bitumen, which has a permeability rating of 80/100, is the method of choice for coating surfaces and roads. This particular variety of bitumen is required for the manufacturing of emulsions bitumen and other modified bitumen products. This grade of bitumen can be a good substitute for penetrating bitumen 80/100.

Advantages of Viscosity Grade Bitumen 10

  • It is appropriate for temperatures below 30 °C.
  • It has an 800 absolute viscosity.
  • When compared to VG30 and VG40, it has a better penetration value.

BITUMEN VG-20

Paving applications in areas with low temperatures and high elevations.

Advantages of Viscosity Grade Bitumen 20

  • High-altitude, cold climate areas employ VG-20 bitumen, a grade of viscosity bitumen. When building roads in areas where the average temperature is between 30 and 37 °C, this grade of bitumen is appropriate.

BITUMEN VG-30

VG30 grade viscosity bitumen is used to build super heavy bituminous pavements. These types of sidewalks must withstand high and significant traffic loads, so this type of grade is used more often. Road construction, construction, insulation, and liquid bitumen are the most common industries that use this type of bitumen. VG30 bitumen is very suitable for temperate climates and can be used instead of bitumen 60/70.

Advantages of Viscosity Grade Bitumen 30

  • It can withstand temperatures higher than 30 °C.
  • Bitumen with a greater viscosity is more suited for a clayed soil.
  • In wet conditions, VG30 is better appropriate for road building.

BITUMEN VG-40

In highly stressed areas such as intersections, highways near tolls, and truck parking lots, VG 40 bitumen with a permeability of 40/50 is used instead of the old bitumen. Due to its high viscosity, this type of mixed hard bitumen is suitable for surfaces that are supposed to bear high tensile strength loads and heavy traffic loads. This type of bitumen is used at higher temperatures and on surfaces that require more resistance and it can be a suitable alternative to penetration bitumen 40/50 and penetration bitumen 30/40.

Advantages of Viscosity Grade Bitumen 40

  • It can withstand temperatures exceeding 40 °C.
  • It has a 3200 absolute viscosity.
  • It is the ideal kind of bitumen when there will be a lot of traffic.

Petro naft produces Viscosity Bitumen / VG Bitumen of the best quality in a variety of types and grades and exports them from Iran and the United Arab Emirates to other nations worldwide.

  • Viscosity Bitumen Iran / VG Bitumen Iran
  • Viscosity Bitumen Emirates / VG Bitumen Emirates

Viscosity GRADE bitumen packing

New Steel Drum, Bulk.
