How to Accurately Calculate Bitumen Content in Polymer-Modified Asphalt Mixes

Bitumen content in polymer-modified asphalt is crucial for achieving optimal pavement performance. This comprehensive guide covers advanced calculation techniques, the impact of environmental factors, and the latest innovations in asphalt technology. It also addresses common challenges and provides practical solutions to ensure accurate bitumen measurement. By understanding these aspects, engineers and contractors can enhance the durability, flexibility, and longevity of asphalt pavements, leading to more sustainable and cost-effective infrastructure.
bitumen content in polymer-modified asphalt

Understanding Bitumen Content in Polymer-Modified Asphalt Mixes

Polymer-modified bitumen (PMB) has become increasingly popular in asphalt mixes due to its enhanced performance characteristics. Understanding the bitumen content in these mixes is crucial for ensuring optimal performance in various applications, from road construction to roofing materials.

The Importance of Bitumen Content

Bitumen content plays a critical role in determining the properties of asphalt. It influences the durability, flexibility, and resistance to deformation of the final product. In polymer-modified asphalt mixes, accurately determining the bitumen content becomes even more essential as it directly affects the benefits provided by the polymer additives.

Components of Polymer-Modified Asphalt Mixes

Polymer-modified asphalt mixes consist of three main components:

  1. Base Bitumen: The primary binder material.
  2. Polymer Additives: Enhances the properties of the bitumen, providing improved elasticity, strength, and temperature susceptibility.
  3. Aggregates: The granular material that provides structural integrity.

Why Accurate Measurement Matters

Accurate measurement of bitumen content ensures the desired performance characteristics of the asphalt mix. Inaccurate measurements can lead to:

  • Reduced Lifespan: Insufficient or excess bitumen can lead to premature failures.
  • Compromised Performance: Incorrect bitumen content can affect the mix’s resistance to rutting, cracking, and other forms of distress.
  • Economic Impacts: Overuse of bitumen increases costs, while underuse can result in higher maintenance expenses.

Methods for Determining Bitumen Content

Several methods are used to determine bitumen content in polymer-modified asphalt mixes:

  1. Extraction Tests
  • Involves dissolving the bitumen in a solvent and separating it from the aggregate. This method, however, does not account for the polymer content, which necessitates additional steps to adjust the results.
  1. Ignition Method
  • The asphalt mix is burned in a furnace, and the remaining aggregate is weighed. The weight loss indicates the bitumen content. Adjustments are needed for polymer content since polymers can affect the accuracy.

Adjusting for Polymer Content

Given that traditional methods do not account for the polymer additives, adjustments must be made:

  1. Determine Polymer Percentage: Obtain this information from the supplier’s technical data sheet.

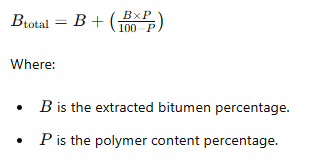

  2. Calculate Adjusted Bitumen Content: Use the following formula:

b and p


  • 𝐵 is the extracted bitumen percentage.
  • 𝑃 is the polymer content percentage.

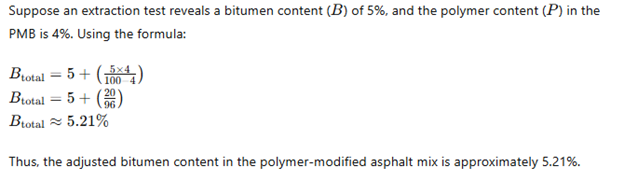

Practical Example

b total

Understanding and accurately measuring bitumen content in polymer-modified asphalt mixes is essential for optimizing their performance. By adjusting for the polymer content, engineers and contractors can ensure the longevity and effectiveness of their asphalt applications, leading to better infrastructure and cost savings in the long term.

Table: Comparison of Bitumen Content Measurement Methods



Polymer Adjustment Needed

Common Usage

Extraction Test



Widely used

Ignition Method




This comprehensive understanding helps ensure the consistent quality and performance of polymer-modified asphalt mixes, meeting the demands of modern infrastructure projects.


Step-by-Step Guide to Calculating Bitumen Percentage

Accurately calculating the bitumen percentage in polymer-modified asphalt mixes is crucial for ensuring optimal performance in various applications. This guide provides a detailed, step-by-step approach to help you achieve precise measurements.

Step 1: Gather Necessary Materials and Equipment

To begin the calculation process, ensure you have the following materials and equipment:

  • Polymer-modified asphalt sample
  • Solvent (e.g., trichloroethylene) for extraction tests
  • Centrifuge or filtration equipment
  • Furnace for ignition method
  • Balance for weighing samples
  • Supplier’s technical data sheet for polymer content information

Step 2: Conduct an Extraction Test

The extraction test is the first step in determining the bitumen content in the asphalt mix.


  1. Weigh the Sample: Take a representative sample of the asphalt mix and weigh it accurately.
  2. Add Solvent: Dissolve the bitumen by adding an appropriate solvent.
  3. Separate the Bitumen: Use a centrifuge or filtration to separate the bitumen from the aggregates and fines.
  4. Weigh the Residue: After separating, weigh the residue to determine the bitumen content.

Step 3: Determine the Extracted Bitumen Content

Calculate the bitumen percentage (B) in the sample using the weights obtained from the extraction test.

b w and t

Step 4: Account for Polymer Content

Since the polymer is not typically extracted during the extraction test, it is essential to adjust the bitumen content to include the polymer additives.

Step 5: Obtain Polymer Content Percentage

Refer to the supplier’s technical data sheet to find the percentage of polymer (P) in the polymer-modified bitumen.

Step 6: Adjust the Bitumen Content

Use the following formula to adjust the extracted bitumen content to account for the polymer:

b and p total

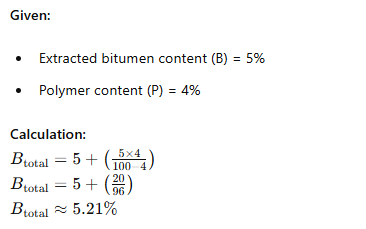

Step 7: Example Calculation

Let’s consider an example to illustrate the calculation process:

btotal and b

Thus, the adjusted bitumen content in the polymer-modified asphalt mix is approximately 5.21%.

Step 8: Verify and Record Results

After calculating the adjusted bitumen content, verify the results by cross-checking with expected values or conducting repeat tests if necessary. Record the final bitumen percentage for quality control and documentation purposes.

Practical Considerations

  • Accuracy: Ensure accurate weighing and measurement to minimize errors.
  • Solvent Use: Handle solvents with care and follow safety guidelines.
  • Repeat Tests: Conduct multiple tests to ensure consistency and reliability of results.

Table: Key Steps and Considerations



Key Considerations


Gather Materials

Ensure all necessary equipment is available


Conduct Extraction Test

Accurate sample weighing and solvent use


Determine Bitumen Content

Calculate based on weight ratios


Account for Polymer Content

Adjust for unextracted polymer


Obtain Polymer Percentage

Refer to technical data sheet


Adjust Bitumen Content

Use provided formula for accuracy


Example Calculation

Illustrate with real numbers


Verify and Record

Ensure accuracy and document results

By following this step-by-step guide, you can accurately calculate the bitumen percentage in polymer-modified asphalt mixes, ensuring optimal performance and quality in your projects. This comprehensive approach is essential for maintaining the integrity and durability of modern asphalt applications.

Impact of Polymer Content on Asphalt Performance

Polymer-modified bitumen (PMB) is known for enhancing the performance characteristics of asphalt mixes. Understanding how the polymer content affects asphalt performance is critical for optimizing the material’s properties and ensuring long-lasting infrastructure. This section delves into the specific impacts of polymer content on various performance aspects of asphalt.

Improved Elasticity and Flexibility

Increased Elastic Recovery Polymer additives in bitumen significantly improve its elasticity, allowing the asphalt to recover its shape after deformation. This property is crucial for high-traffic areas where the pavement experiences continuous stress and strain.

Enhanced Flexibility at Low Temperatures Polymers help asphalt maintain flexibility in colder climates, reducing the risk of cracking due to thermal contraction. This enhancement is particularly important for regions with significant temperature fluctuations.

Enhanced Resistance to Deformation

Rutting Resistance One of the primary benefits of adding polymers to bitumen is the increased resistance to rutting. Rutting, caused by the permanent deformation of asphalt under heavy loads, is a common issue in high-traffic areas. Polymer-modified asphalt maintains its structural integrity better under these conditions.

Fatigue Resistance Polymers improve the fatigue resistance of asphalt, allowing it to withstand repeated loading and unloading cycles without developing cracks. This property extends the lifespan of pavements and reduces maintenance costs.

Improved Adhesion and Cohesion

Better Aggregate Binding Polymers enhance the adhesion between bitumen and aggregates, ensuring a more cohesive mix. This improved binding helps prevent stripping, where the aggregate particles detach from the bitumen, leading to pavement failure.

Increased Cohesive Strength The cohesive strength of polymer-modified bitumen is higher than that of conventional bitumen. This strength contributes to the overall durability of the asphalt mix, making it more resistant to various forms of distress.

Resistance to Environmental Factors

Oxidation and Aging Resistance Polymers slow down the oxidation process, which can harden bitumen and make it brittle over time. This resistance to aging helps maintain the performance characteristics of the asphalt over a longer period.

Moisture Susceptibility Reduction Polymer-modified bitumen exhibits lower moisture susceptibility, reducing the risk of water-induced damage such as stripping and pothole formation. This property is particularly beneficial in wet and humid environments.

Performance in Extreme Conditions

High-Temperature Performance In hot climates, polymer-modified asphalt remains stable and resists softening, which prevents deformation and rutting. This high-temperature performance is crucial for maintaining road safety and reducing maintenance.

Cold-Temperature Performance As previously mentioned, the flexibility provided by polymers at low temperatures helps prevent thermal cracking. This dual performance in extreme conditions makes polymer-modified asphalt a versatile material for various climates.

Economic and Environmental Benefits

Longer Lifespan and Reduced Maintenance The enhanced durability and performance of polymer-modified asphalt lead to a longer lifespan for pavements, reducing the frequency and cost of repairs. This economic benefit is significant for large-scale infrastructure projects.

Environmental Impact By extending the life of pavements and reducing the need for frequent maintenance, polymer-modified asphalt contributes to environmental sustainability. Fewer repairs mean lower emissions from construction equipment and reduced consumption of raw materials.

Advanced Innovations and Techniques

Latest Developments in Polymer Technology Recent advancements in polymer technology have led to the development of new types of polymers that offer even better performance characteristics. These innovations include polymers that provide enhanced resistance to UV radiation, further improving the longevity of asphalt surfaces.

Smart Polymers and Self-Healing Asphalt Research is ongoing into smart polymers that can respond to environmental changes and self-healing asphalt that can repair minor cracks automatically. These cutting-edge technologies promise to revolutionize the way we approach pavement construction and maintenance.

Table: Summary of Polymer Content Benefits

Performance Aspect

Impact of Polymer Content

Elasticity and Flexibility

Improved recovery and low-temperature flexibility

Deformation Resistance

Enhanced rutting and fatigue resistance

Adhesion and Cohesion

Better aggregate binding and increased cohesive strength

Environmental Resistance

Reduced oxidation, aging, and moisture susceptibility

Extreme Condition Performance

Stability in high temperatures and flexibility in cold climates

Economic and Environmental

Longer lifespan, reduced maintenance, and lower environmental impact

Understanding the impact of polymer content on asphalt performance allows engineers to design and construct pavements that meet specific performance criteria, ensuring safety, durability, and cost-effectiveness. This knowledge is essential for leveraging the full benefits of polymer-modified bitumen in modern infrastructure projects.

Advanced Techniques for Accurate Bitumen Calculation

Accurately determining the bitumen content in polymer-modified asphalt mixes is critical for ensuring optimal performance and longevity of pavements. Traditional methods, while effective, can sometimes fall short when dealing with polymer additives. This section explores advanced techniques that provide more precise and reliable results for bitumen calculation in polymer-modified asphalt mixes.

Enhanced Extraction Methods

Supercritical Fluid Extraction (SFE) Supercritical Fluid Extraction uses supercritical CO2 to dissolve and extract bitumen from the asphalt mix. This method is highly efficient and minimizes the loss of polymers during the extraction process.


  1. Prepare the asphalt sample.
  2. Use supercritical CO2 to dissolve the bitumen.
  3. Separate the bitumen-polymer solution from the aggregates.
  4. Recover and measure the extracted bitumen and polymer content.


  • High precision and accuracy.
  • Environmentally friendly due to the use of CO2.
  • Minimal polymer degradation.

Infrared Spectroscopy

Fourier-Transform Infrared (FTIR) Spectroscopy FTIR spectroscopy identifies and quantifies bitumen and polymer content based on their unique infrared absorption spectra. This technique is non-destructive and provides detailed compositional analysis.


  1. Prepare a thin film of the asphalt sample.
  2. Pass infrared light through the sample.
  3. Analyze the absorption spectra to determine the bitumen and polymer content.


  • Non-destructive testing method.
  • High accuracy in identifying bitumen and polymer types.
  • Provides detailed compositional data.

Thermogravimetric Analysis (TGA)

Thermogravimetric Analysis measures changes in the mass of a sample as it is heated, providing insights into the bitumen and polymer content based on their thermal properties.


  1. Place a small sample of the asphalt mix in the TGA instrument.
  2. Gradually heat the sample and record the mass changes.
  3. Analyze the mass loss curves to determine the bitumen and polymer content.


  • Accurate differentiation between bitumen and polymer content.
  • Provides thermal stability data of the asphalt mix.
  • Useful for quality control and research applications.

Nuclear Magnetic Resonance (NMR) Spectroscopy

NMR spectroscopy offers a detailed analysis of the molecular structure of bitumen and polymers, allowing for precise calculation of their content in the asphalt mix.


  1. Dissolve a small sample of the asphalt mix in a suitable solvent.
  2. Place the solution in the NMR spectrometer.
  3. Analyze the NMR spectra to quantify the bitumen and polymer content.


  • Highly detailed molecular analysis.
  • Non-destructive and precise.
  • Effective for research and quality control.

X-ray Fluorescence (XRF) Spectroscopy

XRF spectroscopy measures the elemental composition of the asphalt mix, providing indirect data about the bitumen content based on the presence of specific elements associated with bitumen.


  1. Prepare the asphalt sample for XRF analysis.
  2. Expose the sample to X-rays and measure the emitted fluorescence.
  3. Analyze the fluorescence spectra to determine the elemental composition and infer the bitumen content.


  • Non-destructive and rapid analysis.
  • High precision in elemental composition determination.
  • Useful for quality assurance and control.

Comparison of Advanced Techniques




Environmental Impact

Application Scope

Supercritical Fluid Extraction




Laboratory and industrial applications

FTIR Spectroscopy




Compositional analysis and quality control

Thermogravimetric Analysis




Quality control and research

NMR Spectroscopy

Very High



Detailed molecular analysis and research

X-ray Fluorescence




Elemental composition and quality control

Selecting the Right Technique

Choosing the appropriate advanced technique depends on the specific requirements of the project, including the desired precision, environmental considerations, and whether the test needs to be non-destructive. Here are some guidelines:

  • For detailed compositional analysis, FTIR and NMR spectroscopy are ideal due to their high precision and non-destructive nature.
  • For routine quality control, Thermogravimetric Analysis and X-ray Fluorescence offer reliable results and are practical for frequent use.
  • For research and development, Supercritical Fluid Extraction provides high precision and is useful for developing new polymer-modified bitumen formulations.

Implementing advanced techniques for bitumen calculation ensures higher accuracy and reliability, leading to better performance and longevity of polymer-modified asphalt mixes. These methods provide a comprehensive understanding of the material composition, helping engineers and researchers optimize their formulations for various applications.

By leveraging these advanced techniques, stakeholders can achieve greater confidence in their bitumen content measurements, ultimately contributing to more durable and cost-effective infrastructure projects.

Common Challenges and Solutions in Bitumen Extraction

Extracting bitumen from polymer-modified asphalt mixes is a complex process that presents several challenges. Addressing these challenges is essential for accurate measurement and optimal performance of the final asphalt product. This section outlines the common challenges encountered during bitumen extraction and provides practical solutions to overcome them.

Challenge 1: Incomplete Extraction

Problem: Incomplete extraction of bitumen from the asphalt mix can result in inaccurate bitumen content measurements. This issue often arises due to insufficient solvent action or inadequate processing time.


  • Enhanced Solvent Use: Use solvents with higher dissolution efficiency, such as trichloroethylene or toluene, to ensure complete extraction.
  • Extended Processing Time: Increase the extraction time to allow the solvent to fully dissolve the bitumen.
  • Mechanical Agitation: Employ mechanical agitation or ultrasonication to improve solvent penetration and bitumen dissolution.

Challenge 2: Polymer Interference

Problem: Polymers in the asphalt mix can interfere with the extraction process, leading to partial dissolution or incomplete separation of bitumen and polymers.


  • Specific Solvents: Use solvents specifically designed for polymer-modified bitumen to ensure both bitumen and polymers are adequately dissolved.
  • Dual Extraction Methods: Combine different extraction methods, such as solvent extraction followed by supercritical fluid extraction, to ensure complete recovery of bitumen and polymers.

Challenge 3: Solvent Loss and Contamination

Problem: Loss of solvent during the extraction process or contamination of the solvent can lead to inaccurate measurements and potential environmental hazards.


  • Closed Extraction Systems: Utilize closed extraction systems to minimize solvent loss and exposure.
  • Solvent Recycling: Implement solvent recycling systems to purify and reuse the solvent, reducing waste and contamination.
  • Regular Maintenance: Ensure regular maintenance and calibration of extraction equipment to prevent leaks and contamination.

Challenge 4: Equipment Calibration and Maintenance

Problem: Incorrectly calibrated or poorly maintained extraction equipment can lead to erroneous results and reduced reliability.


  • Regular Calibration: Schedule regular calibration of all extraction equipment to ensure accuracy.
  • Routine Maintenance: Conduct routine maintenance checks to identify and rectify any equipment issues promptly.
  • Standard Operating Procedures (SOPs): Develop and follow SOPs for equipment use and maintenance to ensure consistency and reliability.

Challenge 5: Environmental and Safety Concerns

Problem: The use of hazardous solvents and the handling of bitumen and polymers pose environmental and safety risks.


  • Safer Solvent Alternatives: Use safer, less toxic solvents where possible, such as bio-based solvents.
  • Proper Ventilation: Ensure proper ventilation in the extraction area to prevent the accumulation of harmful fumes.
  • Personal Protective Equipment (PPE): Equip personnel with appropriate PPE, including gloves, masks, and eye protection.
  • Environmental Controls: Implement environmental controls such as fume hoods and solvent recovery systems to minimize exposure and waste.

Challenge 6: Accurate Measurement and Documentation

Problem: Inconsistent measurement techniques and poor documentation can lead to variability in results and difficulty in reproducing experiments.


  • Standardized Procedures: Develop standardized procedures for sample preparation, extraction, and measurement to ensure consistency.
  • Detailed Documentation: Maintain detailed documentation of all procedures, measurements, and observations to facilitate reproducibility.
  • Training and Quality Control: Provide training for personnel on standardized procedures and implement quality control checks to ensure adherence.

Table: Summary of Challenges and Solutions



Incomplete Extraction

Enhanced solvent use, extended processing time, mechanical agitation

Polymer Interference

Specific solvents, dual extraction methods

Solvent Loss and Contamination

Closed extraction systems, solvent recycling, regular maintenance

Equipment Calibration and Maintenance

Regular calibration, routine maintenance, SOPs

Environmental and Safety Concerns

Safer solvent alternatives, proper ventilation, PPE, environmental controls

Accurate Measurement and Documentation

Standardized procedures, detailed documentation, training and quality control

By addressing these common challenges through effective solutions, the accuracy and reliability of bitumen extraction processes can be significantly improved. This ensures that the bitumen content in polymer-modified asphalt mixes is accurately measured, leading to better quality control and optimized performance in various applications.

Understanding and overcoming these challenges is essential for anyone involved in the production, testing, and application of polymer-modified bitumen, ensuring that the final asphalt products meet the desired specifications and performance standards.

Latest Innovations in Polymer-Modified Asphalt Technology

Polymer-modified asphalt technology has evolved significantly over the years, leading to the development of new materials and techniques that enhance the performance, durability, and sustainability of asphalt pavements. This section explores the latest innovations in this field, highlighting cutting-edge advancements and their implications for modern infrastructure.

Advanced Polymer Additives

Elastomeric Polymers Elastomeric polymers, such as styrene-butadiene-styrene (SBS) and styrene-butadiene-rubber (SBR), are widely used in polymer-modified asphalt. These polymers improve the elasticity and resilience of asphalt, enhancing its resistance to deformation and cracking.

Thermoplastic Polymers Thermoplastic polymers, including polyethylene and polypropylene, offer significant improvements in the high-temperature performance of asphalt mixes. These polymers enhance the stiffness and stability of asphalt, reducing rutting and deformation under heavy traffic loads.

Nanotechnology in Asphalt Modification

Nano-Polymers Nano-polymers, with their exceptionally small particle size, provide superior dispersion within the bitumen matrix. This leads to improved mechanical properties, such as increased tensile strength and elasticity. Nano-polymers also enhance the durability and longevity of asphalt pavements.

Nano-Clay Additives Incorporating nano-clay additives into polymer-modified asphalt improves the material’s resistance to moisture and oxidative aging. Nano-clays create a barrier effect, reducing the permeability of the asphalt and enhancing its overall performance.

Self-Healing Asphalt

Microcapsule-Based Self-Healing Self-healing asphalt incorporates microcapsules filled with rejuvenating agents into the asphalt mix. When cracks form, these microcapsules break open, releasing the agents that seal the cracks and restore the asphalt’s integrity. This technology significantly extends the lifespan of pavements and reduces maintenance costs.

Induction Heating for Self-Healing Induction heating involves embedding conductive fibers within the asphalt mix. When cracks appear, an induction heating process activates the fibers, generating heat that melts and reflows the bitumen, effectively sealing the cracks. This method provides a rapid and efficient self-healing mechanism for asphalt pavements.

Sustainable and Eco-Friendly Modifications

Recycled Polymers Utilizing recycled polymers in asphalt modification contributes to sustainability by reducing waste and conserving resources. Recycled materials, such as waste plastics and rubber, are processed and incorporated into the asphalt mix, enhancing its performance while promoting environmental responsibility.

Bio-Based Polymers Bio-based polymers, derived from renewable sources like vegetable oils and natural resins, offer an eco-friendly alternative to traditional synthetic polymers. These materials provide comparable performance enhancements while reducing the carbon footprint of asphalt production.

Enhanced Testing and Quality Control

Automated Testing Systems Automated testing systems for polymer-modified asphalt allow for precise and efficient evaluation of material properties. These systems utilize advanced sensors and software to measure parameters such as viscosity, elasticity, and thermal stability, ensuring consistent quality control.

Real-Time Monitoring Technologies Real-time monitoring technologies, such as embedded sensors and IoT devices, provide continuous data on the condition and performance of asphalt pavements. These technologies enable proactive maintenance and early detection of potential issues, improving the overall management of road infrastructure.

Table: Overview of Latest Innovations in Polymer-Modified Asphalt




Elastomeric Polymers

Polymers like SBS and SBR that enhance elasticity and resilience

Improved deformation resistance and cracking prevention

Thermoplastic Polymers

Polymers like polyethylene and polypropylene that improve high-temperature performance

Reduced rutting and deformation under heavy traffic


Exceptionally small polymers for superior dispersion and mechanical properties

Increased tensile strength and elasticity

Nano-Clay Additives

Additives that improve moisture and oxidative resistance

Enhanced durability and longevity

Microcapsule-Based Self-Healing

Microcapsules with rejuvenating agents for crack sealing

Extended pavement lifespan and reduced maintenance costs

Induction Heating for Self-Healing

Conductive fibers activated by induction heating for crack sealing

Rapid and efficient self-healing mechanism

Recycled Polymers

Incorporating waste plastics and rubber into asphalt

Enhanced performance and environmental sustainability

Bio-Based Polymers

Polymers derived from renewable sources for eco-friendly modification

Reduced carbon footprint and comparable performance

Automated Testing Systems

Advanced sensors and software for precise evaluation of material properties

Consistent quality control

Real-Time Monitoring Technologies

Embedded sensors and IoT devices for continuous performance data

Proactive maintenance and early issue detection

Future Directions and Potential

The continuous advancements in polymer-modified asphalt technology promise further improvements in pavement performance and sustainability. Future research and development may focus on:

  • Smart Materials: Development of smart asphalt materials that can respond to environmental changes and stress conditions dynamically.
  • Enhanced Recycling Techniques: Innovative methods to increase the incorporation of recycled materials without compromising performance.
  • Climate-Resilient Pavements: Creating asphalt mixes specifically designed to withstand extreme weather conditions and climate change impacts.

The latest innovations in polymer-modified asphalt technology are revolutionizing the field, providing solutions that enhance the durability, performance, and sustainability of asphalt pavements. By adopting these cutting-edge advancements, engineers and contractors can deliver high-quality, long-lasting infrastructure that meets the demands of modern society and environmental considerations.

How Environmental Factors Affect Bitumen Content

Environmental factors play a crucial role in determining the performance and longevity of bitumen in asphalt mixes. Understanding how these factors influence bitumen content and properties helps in designing and maintaining more durable and resilient pavements. This section explores the various environmental factors that impact bitumen content and the strategies to mitigate their effects.

Temperature Variations

High Temperatures High temperatures can cause bitumen to soften, leading to issues such as rutting and bleeding in asphalt pavements. This is particularly problematic in regions with hot climates or during summer months.


  • Reduced viscosity and stiffness of bitumen.
  • Increased susceptibility to deformation under traffic loads.

Mitigation Strategies:

  • Use of polymer-modified bitumen to enhance high-temperature performance.
  • Incorporation of thermoplastic polymers to increase stiffness and stability.
  • Application of reflective surface coatings to reduce heat absorption.

Low Temperatures Low temperatures can cause bitumen to become brittle, leading to cracking and other forms of distress. This is especially relevant in colder climates or during winter months.


  • Increased risk of thermal cracking.
  • Reduced flexibility and elasticity of bitumen.

Mitigation Strategies:

  • Use of elastomeric polymers to improve low-temperature flexibility.
  • Addition of anti-aging agents to maintain bitumen properties.
  • Designing asphalt mixes with appropriate gradation and binder content.

Moisture and Humidity

Moisture Ingress Moisture can penetrate asphalt pavements, leading to issues such as stripping, where the bond between bitumen and aggregate is weakened. This is a common problem in areas with high rainfall or poor drainage.


  • Reduced adhesion between bitumen and aggregates.
  • Accelerated aging and oxidation of bitumen.

Mitigation Strategies:

  • Use of moisture-resistant additives, such as lime or liquid anti-stripping agents.
  • Proper drainage design to prevent water accumulation.
  • Application of sealants to protect the pavement surface.

Humidity High humidity levels can accelerate the oxidative aging of bitumen, affecting its properties and performance over time.


  • Increased rate of bitumen hardening and embrittlement.
  • Reduced lifespan of the pavement.

Mitigation Strategies:

  • Use of modified bitumen with enhanced oxidative resistance.
  • Regular maintenance and sealing to protect against moisture ingress.
  • Incorporation of antioxidants in the bitumen formulation.

UV Radiation

Exposure to UV Light Prolonged exposure to ultraviolet (UV) radiation can cause the degradation of bitumen, leading to a loss of flexibility and durability.


  • Oxidative aging and hardening of bitumen.
  • Surface cracking and reduced performance.

Mitigation Strategies:

  • Use of UV-resistant additives to enhance durability.
  • Application of surface treatments, such as bitumen emulsions or rejuvenators.
  • Incorporation of light-colored aggregates to reflect UV radiation.

Freeze-Thaw Cycles

Repeated Freeze-Thaw Cycles In regions with significant temperature fluctuations, repeated freeze-thaw cycles can cause significant damage to asphalt pavements. Water within the pavement structure expands and contracts, leading to cracking and pothole formation.


  • Increased cracking and pavement distress.
  • Accelerated deterioration of the pavement structure.

Mitigation Strategies:

  • Use of bitumen with enhanced flexibility and low-temperature performance.
  • Designing asphalt mixes with appropriate air void content to accommodate expansion.
  • Regular maintenance to seal cracks and prevent water infiltration.

Pollution and Chemical Exposure

Chemical Spills and Contaminants Exposure to chemicals, such as fuel spills or industrial pollutants, can degrade bitumen and weaken its binding properties.


  • Softening and weakening of the bitumen.
  • Increased susceptibility to deformation and damage.

Mitigation Strategies:

  • Use of chemically resistant bitumen formulations.
  • Implementing protective barriers or coatings on the pavement surface.
  • Immediate cleanup and maintenance following chemical spills.

Table: Environmental Factors and Their Impact on Bitumen

Environmental Factor

Impact on Bitumen

Mitigation Strategies

High Temperatures

Softening, rutting, bleeding

Polymer-modified bitumen, thermoplastic polymers, reflective coatings

Low Temperatures

Brittleness, thermal cracking

Elastomeric polymers, anti-aging agents, proper mix design

Moisture Ingress

Stripping, reduced adhesion

Moisture-resistant additives, proper drainage, sealants

High Humidity

Accelerated aging, hardening

Modified bitumen, regular maintenance, antioxidants

UV Radiation

Oxidative aging, surface cracking

UV-resistant additives, surface treatments, light-colored aggregates

Freeze-Thaw Cycles

Cracking, pothole formation

Flexible bitumen, proper air void design, regular maintenance

Chemical Exposure

Softening, weakening

Chemically resistant formulations, protective coatings, immediate cleanup

Environmental factors significantly influence the performance and longevity of bitumen in asphalt mixes. By understanding these impacts and implementing appropriate mitigation strategies, engineers and contractors can design more resilient and durable pavements. This proactive approach helps ensure that asphalt pavements can withstand the challenges posed by various environmental conditions, ultimately leading to longer-lasting and more cost-effective infrastructure.

Comparing Different Methods for Bitumen Content Analysis

Accurate analysis of bitumen content in polymer-modified asphalt mixes is critical for ensuring the performance and longevity of pavements. Various methods are used to determine bitumen content, each with its advantages and limitations. This section compares different methods for bitumen content analysis to help choose the most suitable approach for specific applications.

Solvent Extraction Method

Overview: The solvent extraction method involves dissolving the bitumen from the asphalt mix using a solvent, then separating and weighing the remaining aggregate.


  1. Weigh the asphalt sample.
  2. Add a suitable solvent (e.g., trichloroethylene).
  3. Separate the bitumen from the aggregate using a centrifuge or filtration.
  4. Weigh the residue to determine bitumen content.


  • Widely used and standardized.
  • Provides accurate results for both bitumen and aggregate content.


  • Time-consuming and labor-intensive.
  • Solvent disposal can be environmentally hazardous.
  • Does not fully account for polymer content in modified bitumen.

Ignition Method

Overview: The ignition method involves heating the asphalt mix in a furnace to burn off the bitumen, leaving the aggregate behind. The weight loss corresponds to the bitumen content.


  1. Weigh the asphalt sample.
  2. Place the sample in a high-temperature furnace.
  3. Burn off the bitumen and weigh the remaining aggregate.
  4. Calculate the bitumen content based on weight loss.


  • Quick and relatively simple.
  • No solvents required, making it more environmentally friendly.
  • Suitable for routine quality control.


  • High temperatures can affect the aggregate properties.
  • Polymer additives may not burn off completely, affecting accuracy.

Nuclear Magnetic Resonance (NMR) Spectroscopy

Overview: NMR spectroscopy provides detailed molecular analysis of bitumen by detecting the magnetic properties of atomic nuclei in the bitumen molecules.


  1. Dissolve a small sample of the asphalt mix in a suitable solvent.
  2. Place the solution in the NMR spectrometer.
  3. Analyze the NMR spectra to quantify bitumen and polymer content.


  • Highly precise and non-destructive.
  • Provides detailed compositional analysis.
  • Effective for polymer-modified bitumen.


  • Requires specialized equipment and expertise.
  • High initial cost and maintenance expenses.

Infrared Spectroscopy (FTIR)

Overview: FTIR spectroscopy identifies and quantifies bitumen and polymer content based on their unique infrared absorption spectra.


  1. Prepare a thin film of the asphalt sample.
  2. Pass infrared light through the sample.
  3. Analyze the absorption spectra to determine bitumen and polymer content.


  • Non-destructive and highly accurate.
  • Provides detailed compositional information.
  • Suitable for polymer-modified bitumen.


  • Requires specialized equipment and training.
  • Limited to laboratory settings.

Thermogravimetric Analysis (TGA)

Overview: TGA measures changes in the mass of a sample as it is heated, providing insights into the bitumen and polymer content based on their thermal properties.


  1. Place a small sample of the asphalt mix in the TGA instrument.
  2. Gradually heat the sample and record the mass changes.
  3. Analyze the mass loss curves to determine bitumen and polymer content.


  • Accurate differentiation between bitumen and polymer content.
  • Provides thermal stability data.
  • Useful for quality control and research applications.


  • Destructive testing method.
  • Requires specialized equipment and expertise.

Comparison Table of Bitumen Content Analysis Methods




Best Used For

Solvent Extraction

Accurate, standardized

Time-consuming, environmentally hazardous

General laboratory use

Ignition Method

Quick, simple, environmentally friendly

May affect aggregate properties, accuracy issues with polymers

Routine quality control

NMR Spectroscopy

Highly precise, non-destructive

Expensive, requires expertise

Detailed compositional analysis

Infrared Spectroscopy (FTIR)

Non-destructive, accurate

Requires specialized equipment

Laboratory analysis, polymer-modified bitumen

Thermogravimetric Analysis (TGA)

Accurate, provides thermal data

Destructive, specialized equipment needed

Quality control, research applications

Selecting the Appropriate Method

Choosing the right method for bitumen content analysis depends on several factors:

  • Accuracy and Precision Needs: For highly detailed and precise analysis, NMR spectroscopy or FTIR are ideal. For general accuracy, solvent extraction and TGA are suitable.
  • Application Context: For routine quality control in the field, the ignition method is practical. For laboratory settings requiring detailed compositional analysis, FTIR and NMR are preferred.
  • Environmental and Safety Considerations: Methods like the ignition method and TGA are more environmentally friendly compared to solvent extraction, which involves hazardous chemicals.
  • Cost and Equipment Availability: NMR and FTIR require expensive, specialized equipment, making them more suitable for well-equipped laboratories, whereas solvent extraction and ignition methods are more accessible.

Understanding and comparing different methods for bitumen content analysis allows for informed decision-making in selecting the most appropriate technique for specific needs. Each method has its strengths and limitations, and the choice will depend on factors such as accuracy requirements, application context, and available resources. By leveraging the right analysis method, engineers and researchers can ensure the quality and performance of polymer-modified asphalt mixes, leading to more durable and reliable pavement structures.

Conclusion: Ensuring Optimal Asphalt Performance with Accurate Bitumen Content Calculation

Accurately calculating bitumen content in polymer-modified asphalt is essential for achieving optimal pavement performance. This comprehensive guide has covered advanced calculation techniques, the impact of environmental factors, the latest innovations in asphalt technology, and solutions to common challenges. By understanding and applying these principles, engineers and contractors can enhance the durability, flexibility, and longevity of asphalt pavements. As a leading producer and supplier of polymer-modified bitumen, PetroNaft invites you to visit our dedicated product page PMB for more information. For inquiries and to place an order, please contact us through our provided channels.

Top FAQs: Expert Answers to Your Common Queries

  1. What is the importance of bitumen content in polymer-modified asphalt?

Bitumen content in polymer-modified asphalt is crucial because it directly impacts the asphalt’s durability, flexibility, and resistance to deformation. The correct bitumen content ensures the mix can withstand various stresses and environmental conditions, leading to longer-lasting pavements. Accurate bitumen content measurement helps in optimizing the mix design, reducing maintenance costs, and improving overall performance.

  1. How do you calculate the bitumen content in polymer-modified asphalt?

To calculate the bitumen content in polymer-modified asphalt, you can use the solvent extraction method to determine the extracted bitumen percentage (B). Then, adjust for the polymer content (P) using the formula: 𝐵total=𝐵+(𝐵×𝑃100−𝑃)Btotal​=B+(100−PB×P​) This formula accounts for the polymer that is not extracted during the test, providing an accurate total bitumen content.

  1. What are the benefits of using polymer-modified bitumen in asphalt mixes?

Polymer-modified bitumen offers several benefits, including enhanced elasticity, improved resistance to rutting and cracking, better adhesion to aggregates, and increased durability under extreme temperatures. These enhancements lead to longer-lasting pavements with reduced maintenance needs, making polymer-modified asphalt an ideal choice for high-traffic and extreme climate conditions.

  1. What are the latest innovations in polymer-modified asphalt technology?

Recent innovations in polymer-modified asphalt technology include the use of nano-polymers for improved mechanical properties, self-healing asphalt with microcapsule-based rejuvenators, and bio-based polymers derived from renewable sources. These advancements enhance the performance, sustainability, and longevity of asphalt pavements, addressing modern infrastructure demands and environmental concerns.

  1. How do environmental factors affect bitumen content in asphalt mixes?

Environmental factors such as temperature variations, moisture, UV radiation, and freeze-thaw cycles significantly impact bitumen content in asphalt mixes. High temperatures can cause bitumen to soften, while low temperatures can make it brittle. Moisture ingress can weaken the bond between bitumen and aggregates, and UV radiation can accelerate oxidative aging. Understanding these effects and incorporating appropriate mitigation strategies is essential for maintaining asphalt performance.

  1. What advanced techniques are used for accurate bitumen content analysis?

Advanced techniques for accurate bitumen content analysis include supercritical fluid extraction (SFE), Fourier-transform infrared (FTIR) spectroscopy, thermogravimetric analysis (TGA), nuclear magnetic resonance (NMR) spectroscopy, and X-ray fluorescence (XRF) spectroscopy. These methods offer high precision, detailed compositional analysis, and better differentiation between bitumen and polymer content, ensuring accurate measurements for quality control and research.

  1. What are the common challenges in bitumen extraction and how can they be overcome?

Common challenges in bitumen extraction include incomplete extraction, polymer interference, solvent loss, equipment calibration issues, and environmental concerns. Solutions include using enhanced solvents, employing dual extraction methods, implementing closed extraction systems, regular equipment calibration, and adopting safer solvent alternatives. Addressing these challenges ensures accurate bitumen content measurement and improved pavement performance.

  1. How does polymer content affect the performance of asphalt?

Polymer content significantly enhances the performance of asphalt by improving its elasticity, deformation resistance, and durability. Polymers increase the asphalt’s ability to recover from stress, resist rutting and cracking, and maintain flexibility in low temperatures. This results in pavements that are more durable, require less maintenance, and can better withstand heavy traffic and extreme weather conditions.

  1. What are the environmental benefits of using polymer-modified asphalt?

Polymer-modified asphalt offers several environmental benefits, including reduced resource consumption, lower emissions from less frequent maintenance, and the potential for using recycled and bio-based polymers. These benefits contribute to sustainability by extending pavement life, minimizing waste, and reducing the carbon footprint of asphalt production and maintenance.

  1. How do you ensure the quality control of polymer-modified asphalt mixes?

Quality control of polymer-modified asphalt mixes involves regular testing using advanced techniques such as FTIR, TGA, and NMR spectroscopy, maintaining proper equipment calibration, and adhering to standardized procedures for sample preparation and analysis. Additionally, incorporating real-time monitoring technologies and automated testing systems helps ensure consistent quality and performance of the asphalt mixes.

  1. What is the composition of Polymer Modified Bitumen?

Polymer Modified Bitumen (PMB) is composed of three primary components: base bitumen, polymer additives, and various modifiers or stabilizers.

  • Base Bitumen: The primary binding agent, typically accounting for 85-95% of the mix.
  • Polymer Additives: These are usually elastomers (e.g., styrene-butadiene-styrene, SBS) or plastomers (e.g., polyethylene), making up about 3-10% of the mix. They enhance the flexibility, elasticity, and temperature resistance of the bitumen.
  • Modifiers/Stabilizers: These can include anti-aging agents, adhesion promoters, and antioxidants, which help improve the overall performance and longevity of the PMB.
  1. What is the bitumen content of asphalt?

The bitumen content of asphalt typically ranges from 4% to 6% by weight of the total mix. This percentage can vary depending on the type of asphalt mix and its intended application. For polymer-modified asphalt, the bitumen content includes both the base bitumen and the polymer additives, which enhance the mix’s performance properties. Accurate measurement of bitumen content is essential for achieving the desired durability, flexibility, and resistance to environmental conditions.

  1. What is the difference between Polymer Modified Bitumen and normal bitumen?

The primary difference between Polymer Modified Bitumen (PMB) and normal bitumen lies in the addition of polymer additives to the PMB. These polymers significantly enhance the properties of the bitumen:

  • Elasticity and Flexibility: PMB offers superior elasticity and flexibility, making it more resistant to cracking and deformation.
  • Temperature Resistance: PMB performs better under extreme temperatures, both high and low, compared to normal bitumen.
  • Durability: The inclusion of polymers increases the lifespan and durability of PMB, reducing maintenance costs and extending pavement life.
  • Adhesion and Cohesion: PMB provides improved adhesion to aggregates and greater cohesive strength, enhancing the overall structural integrity of the asphalt mix.
  1. How to make Polymer Modified Bitumen?

Making Polymer Modified Bitumen involves the following steps:

  1. Selection of Base Bitumen: Choose a suitable base bitumen with desired properties.
  2. Polymer Selection: Select appropriate polymers (e.g., SBS, SBR, polyethylene) based on the required performance characteristics.
  3. Mixing Process: Heat the base bitumen to a specified temperature (usually between 160-180°C).
  4. Polymer Addition: Gradually add the polymer to the heated bitumen while continuously stirring to ensure even distribution.
  5. Blending: Use high-shear mixers or mills to blend the polymer and bitumen thoroughly, ensuring a homogeneous mixture.
  6. Stabilization: Add stabilizers or modifiers as needed to enhance the PMB’s properties and prevent phase separation.
  7. Cooling and Storage: Cool the PMB to a manageable temperature and store it under appropriate conditions until use.
  1. What are the properties of polymer modified bitumen?

Polymer Modified Bitumen exhibits several enhanced properties compared to conventional bitumen:

  • Improved Elasticity: Greater ability to recover its shape after deformation.
  • Enhanced Temperature Resistance: Better performance at both high and low temperatures, reducing the risk of rutting and thermal cracking.
  • Increased Durability: Longer lifespan with reduced need for maintenance.
  • Better Adhesion: Improved binding with aggregates, reducing stripping and increasing structural integrity.
  • Higher Cohesive Strength: Enhanced internal strength, contributing to overall pavement stability.
  • Resistance to Aging: Slower oxidation and aging processes, maintaining performance characteristics over time.
  1. What are the components of modified bitumen?

Modified bitumen consists of the following components:

  • Base Bitumen: The primary binder material, typically comprising 85-95% of the mix.
  • Polymers: Additives such as SBS, SBR, or polyethylene, accounting for about 3-10% of the mix, which enhance elasticity, flexibility, and temperature resistance.
  • Modifiers: Various chemical additives that improve specific properties, including anti-stripping agents, antioxidants, and UV stabilizers.
  • Fillers: In some formulations, fillers like limestone or mineral powders are added to improve the bitumen’s performance and reduce costs.
  • Stabilizers: Agents that prevent phase separation and enhance the stability of the modified bitumen during storage and application.

Prepared by the PetroNaft Co. research team.


Explore more posts related to the topic or product(s) mentioned, categorized under this tag:

Leave a Reply

Your email address will not be published. Required fields are marked *
