An In-depth Study on Polymer Modified Bitumen for Waterproofing
The construction industry continually seeks innovative solutions to enhance efficiency and effectiveness. One such ground-breaking solution is Polymer Modified Bitumen for Waterproofing. This comprehensive article delves into its science, advantages, application techniques, comparison with other materials, case studies, and its promising future. As a remarkable waterproofing solution, PMB offers unique benefits that have significantly transformed the realm of construction and engineering, setting new standards for performance and sustainability.
Polymer Modified Bitumen: An Innovative Waterproofing Solution
Polymer Modified Bitumen (PMB), a versatile material known for its multi-functional benefits, is increasingly gaining ground in the construction and waterproofing sectors. As its name suggests, PMB is a type of bitumen that has been modified with specific polymers to enhance its performance characteristics, particularly its ability to provide waterproofing.
Bitumen, in its original form, is a black or dark-colored cement-like substance that is notably thick and sticky. It’s a naturally occurring material derived from crude oil during the refining process. While standard bitumen exhibits many useful properties such as excellent adhesive abilities and superb water resistance, it also has limitations. These shortcomings include being brittle at low temperatures and softening under high heat. To address these challenges, scientists have successfully introduced polymers to alter the properties of bitumen, thereby leading to the development of PMB.
The modification of bitumen with polymers transforms its characteristics in significant ways. PMB is more resistant to temperature variations and exhibits better elasticity, making it less prone to cracking compared to traditional bitumen. It also has a greater resistance to aging, making it more durable and long-lasting.
In the field of waterproofing, PMB has been revolutionary. It is used in the production of waterproofing membranes applied in the construction of buildings, bridges, and roads. These membranes, when installed correctly, can protect these structures from water and moisture damage, significantly extending their lifespan.
In conclusion, PMB represents an innovative solution to waterproofing challenges, offering improved performance, durability, and versatility over traditional bitumen. The coming sections will delve deeper into the science behind PMB, its advantages, application techniques, comparison with traditional materials, its effective use in various projects, and the future perspectives of this promising material.
Understanding the Science Behind Polymer Modified Bitumen
To fully appreciate the performance benefits of Polymer Modified Bitumen (PMB), it’s important to understand the science underlying its formulation. The modification process entails the addition of polymers to base bitumen, which changes its physical properties to overcome some of the limitations of traditional bitumen.
Bitumen, on its own, is a viscoelastic material, which means it displays both elastic and viscous behavior. While its elasticity is beneficial for absorbing stresses, the viscous nature can lead to deformation under prolonged load or high temperatures, causing issues like rutting in roads or sagging in roofing applications.
Polymers are introduced into bitumen to mitigate these challenges. Polymers are large molecules, or macromolecules, composed of repeated subunits known as monomers. They are characterized by their flexibility, resilience, and resistance to flow. When added to bitumen, they form a three-dimensional network within the bitumen matrix, enhancing its elastic behavior and resistance to deformation.
Two primary types of polymers are commonly used for bitumen modification: plastomers and elastomers. Plastomers, like polyethylene, increase the rigidity of bitumen, improving its resistance to permanent deformation, particularly at high temperatures. Elastomers, like styrene-butadiene-styrene (SBS), enhance the elasticity and low-temperature flexibility of bitumen, reducing its susceptibility to cracking.
The process of polymer modification typically involves the heating of bitumen to a high temperature to lower its viscosity, followed by the addition and thorough mixing of the polymer. The PMB is then left to cool and stabilize before being used.
Through polymer modification, bitumen’s performance characteristics are substantially improved. PMB is more resistant to temperature-induced deformation, making it an excellent material for regions with significant temperature swings. Its improved elasticity also means that it can better accommodate movements in structures without cracking, which is particularly useful in earthquake-prone areas.
Overall, the science behind PMB lies in the advantageous properties of polymers and their interaction with bitumen. This synergy results in a material that offers superior performance in a variety of demanding applications, particularly in waterproofing.
Advantages of Polymer Modified Bitumen in Waterproofing Applications
The use of Polymer Modified Bitumen (PMB) in waterproofing applications has steadily increased due to its myriad of advantages over traditional materials. These benefits, which are a result of PMB’s enhanced physical and performance characteristics, make it a preferred choice in both commercial and residential construction projects. Let’s delve into some of these benefits:
- Improved Durability: PMB displays excellent resistance against aging, oxidation, and weathering, which contributes to its longevity. Structures waterproofed with PMB can maintain their integrity for many years, reducing the need for frequent maintenance or replacement.
- Superior Water Resistance: Owing to the inherent waterproof nature of bitumen and the added advantages from polymer modification, PMB provides exceptional resistance to water penetration. This feature is particularly beneficial in the construction of roofs, basements, and other structures susceptible to water damage.
- Enhanced Elasticity and Flexibility: PMB is more flexible and elastic than traditional bitumen, which enables it to accommodate movements and vibrations in buildings without cracking or failing. This attribute makes PMB an ideal waterproofing material for areas prone to ground movement or seismic activity.
- Temperature Resistance: PMB exhibits excellent resistance to deformation under a wide range of temperatures. It can withstand hot climates without softening and cold climates without becoming brittle, ensuring reliable waterproofing in varying environmental conditions.
- Versatility: PMB can be used in various types of waterproofing systems, including liquid-applied coatings, self-adhesive membranes, and torch-on membranes. Its compatibility with different types of substrates, like concrete, metal, and wood, also adds to its versatility.
- Improved Adhesion: The polymers in PMB enhance its adhesive properties, ensuring excellent bond strength with the substrate. This reduces the risk of delamination, ensuring a continuous, effective waterproof barrier.
- Resistance to Chemicals and Corrosion: PMB is resistant to most common chemicals, salts, and acids, reducing the risk of corrosion or deterioration of the waterproofing layer in challenging environments.
In summary, the combination of these benefits makes PMB an exceptional material for waterproofing applications. Its use can lead to significant cost savings over time due to reduced maintenance and replacement needs, not to mention the invaluable peace of mind it brings by safeguarding structures against water damage.
Application Techniques for Polymer Modified Bitumen in Waterproofing
The successful use of Polymer Modified Bitumen (PMB) in waterproofing relies on the correct application technique. Depending on the form and type of PMB product, different methods can be employed. Here are some common application techniques:
- Torch-On Application: This method is typically used for PMB membrane rolls. The membrane is rolled out onto the surface needing waterproofing, and then a torch is used to heat the underside of the membrane. This melts the bitumen, allowing it to bond to the substrate. As the membrane cools, it forms a waterproof layer. Torch-on application requires professional handling due to the use of open flames and high temperatures.
- Self-Adhesive Application: Some PMB membranes come with a self-adhesive backing. In this method, the membrane is simply unrolled and pressed onto the prepared surface. The adhesive backing forms a bond with the substrate, creating a waterproof layer. This method is less labor-intensive and does not require special equipment.
- Liquid Application: PMB can also be found in liquid form for certain waterproofing applications. In this method, the liquid PMB is applied onto the surface with a brush, roller, or spray equipment. As the PMB dries, it forms a seamless waterproof membrane. This technique is particularly useful for complex surfaces with many detailing works.

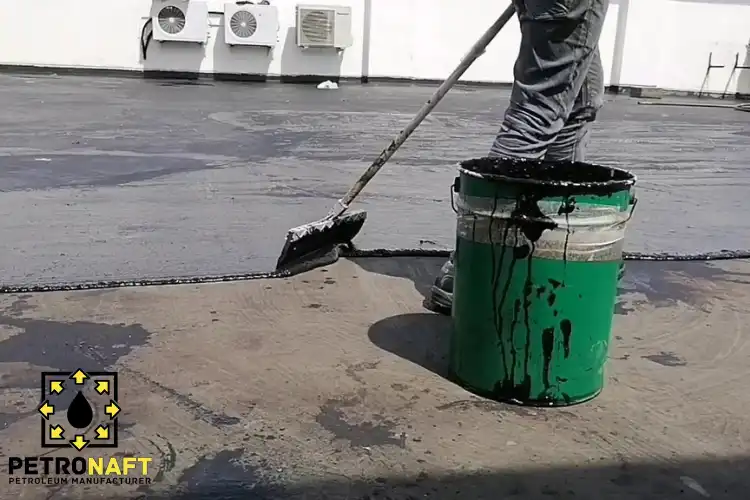

- Hot-Melt Application: In some instances, PMB is heated until it becomes a liquid, then applied to the surface using a mop or squeegee. As the PMB cools, it hardens to form a waterproof layer. This method is generally used for larger surface areas and requires professional handling.
Regardless of the application method, it’s essential to prepare the surface correctly before applying PMB. The surface should be clean, dry, and free of sharp objects that could potentially puncture the membrane.
Proper overlap of the membranes is also crucial in the case of torch-on and self-adhesive applications. Overlaps create a continuous waterproof layer and prevent water ingress at the joints.
In summary, the choice of application technique for PMB in waterproofing depends on the form of the product, the nature of the surface, and the specific requirements of the project. Regardless of the technique used, careful application is vital to ensure effective and long-lasting waterproofing.
Comparing Polymer Modified Bitumen and Traditional Waterproofing Materials
Waterproofing is crucial in construction to prevent water penetration that can lead to structural damage. While traditional waterproofing materials have served their purpose over the years, Polymer Modified Bitumen (PMB) presents an innovative solution with several advantages. Let’s explore a comparative analysis between PMB and traditional waterproofing materials:
- PMB vs. Asphalt: Asphalt has been a common waterproofing material, especially in roofing applications. However, PMB offers superior performance due to its improved temperature stability, resistance to aging, and flexibility. Unlike asphalt, which can become brittle over time or under cold conditions, PMB maintains its flexibility, reducing the risk of cracking and water penetration.
- PMB vs. Concrete: Concrete is another traditional waterproofing material often used in foundations and basements. While it provides strength and durability, concrete is not inherently waterproof and can allow water seepage if cracks develop. On the other hand, PMB forms a continuous, seamless layer that offers excellent water resistance. PMB also exhibits better adhesion to different substrates compared to concrete.
- PMB vs. Metal Sheets: Metal sheets are sometimes used for waterproofing roofs. Although they offer durability, metal sheets are prone to corrosion, especially in areas with high humidity or coastal regions. They also require extensive structural support. In contrast, PMB is resistant to corrosion, requires less structural support due to its lightweight nature, and can easily be installed on a variety of surfaces.
- PMB vs. Bitumen Felt: Bitumen felt has been widely used in waterproofing applications. While it offers good water resistance, it lacks the flexibility and temperature stability that PMB provides. Bitumen felt can become brittle with age or under low temperatures, leading to cracks and leaks. PMB, with its polymer modification, overcomes these limitations, providing a more durable and reliable waterproofing solution.
- PMB vs. Liquid Applied Membranes: While liquid applied membranes offer the advantage of a seamless application, their performance can be affected by the precision of the application, ambient conditions during application, and curing time. PMB, particularly in membrane form, can offer more consistent and reliable performance.
In conclusion, while traditional waterproofing materials have their merits, PMB stands out for its superior water resistance, flexibility, temperature stability, and adaptability to various application methods. It provides a versatile, durable, and efficient solution to meet diverse waterproofing needs in construction.
Case Studies: Effective Use of Polymer Modified Bitumen in Various Projects
The application of Polymer Modified Bitumen (PMB) in various construction and engineering projects worldwide underscores its versatility and effectiveness as a waterproofing solution. Let’s look at some of these case studies:
- The Marina Bay Sands Integrated Resort, Singapore: One of the world’s most iconic buildings, the Marina Bay Sands, utilized PMB for waterproofing. The membrane form of PMB was used to waterproof the roofs of the resort’s three towers and the Skypark, which spans across the towers. The PMB provided a long-lasting, robust waterproofing solution able to withstand the tropical climate of Singapore.
- The Shard, London: The tallest building in the United Kingdom, The Shard, used PMB for its waterproofing needs. Given the complex design and the height of the building, PMB was an excellent choice due to its flexibility, ease of application, and superior performance in different weather conditions.
- The Channel Tunnel, UK-France: One of the longest underwater tunnels in the world, the Channel Tunnel, relied on PMB for waterproofing. The ability of PMB to resist water pressure and its high durability made it an ideal choice for this challenging project.
- Jeddah Tower, Saudi Arabia: Currently under construction and set to become the world’s tallest building upon completion, the Jeddah Tower is using PMB for its waterproofing needs. The harsh desert climate necessitates a waterproofing material that can withstand high temperatures and thermal expansion – conditions that PMB excels in handling.
- The Millau Viaduct, France: The Millau Viaduct, the world’s tallest bridge, used PMB to waterproof its roadway. This usage illustrates PMB’s versatility and suitability for different types of surfaces and structures.
In conclusion, the effective use of PMB in various types of construction and engineering projects worldwide highlights its versatility, robustness, and superiority as a waterproofing solution. The case studies exemplify how PMB’s unique properties can meet a wide range of waterproofing needs, whether it’s a skyscraper, an underwater tunnel, or a towering bridge.
Future Perspectives: Innovations and Trends in Polymer Modified Bitumen
The industry of waterproofing and construction materials is constantly evolving, and Polymer Modified Bitumen (PMB) is no exception. Future trends and innovations are poised to further enhance the effectiveness of PMB and its applications. Here are some future perspectives in this domain:
- Environmentally Friendly PMB: In line with the increasing emphasis on sustainability, efforts are being made to develop environmentally friendly PMB. This includes using recycled or bio-based polymers and bitumen derived from non-conventional sources like plastic waste. This trend not only aligns with global sustainability goals but also contributes to the circular economy.
- Self-Healing PMB: Research is being conducted on the development of self-healing PMB that can recover its original properties after being subjected to damage, such as minor cracks or punctures. This self-healing ability can significantly enhance the durability and lifespan of PMB, reducing maintenance costs and enhancing overall performance.
- Nanotechnology in PMB: The application of nanotechnology in PMB is another promising trend. The addition of nanoparticles can enhance various properties of PMB, such as its thermal stability, aging resistance, and tensile strength. Research is ongoing to explore the optimal types and quantities of nanoparticles to be used.
- Smart PMB: The future may witness the development of “smart” PMB equipped with sensors to monitor its performance and health in real-time. This could enable predictive maintenance and early detection of potential issues, thus preventing failures and prolonging the lifespan of the PMB application.
- Enhanced Application Techniques: Future advancements in technology are likely to bring about more efficient and precise application techniques for PMB. This could include automated or robotic application methods, which can ensure a uniform and flawless application, reducing the chance of human error.
In conclusion, the future of PMB is promising, with numerous innovations and trends on the horizon. These advancements are poised to further enhance the effectiveness, efficiency, and sustainability of PMB as a waterproofing solution, ensuring its continued relevance and applicability in the construction and engineering industries.
After thorough investigation into the topic, it is clear that Polymer Modified Bitumen for Waterproofing is an exceptional and innovative solution in the realm of construction. It offers significant benefits, including remarkable durability, resistance to weather conditions, and improved adhesive characteristics. By examining the scientific principles, practical application, comparison with traditional methods, and exploration of case studies, the effectiveness and efficiency of PMB as a waterproofing solution is evident. Moreover, the future prospects of this material look promising, with trends pointing towards environmentally friendly PMB, self-healing capabilities, nanotechnology applications, and smart PMB.
